Triol AK06 Low Harmonic
ऑर्डर स्थापित करें
विशिष्ट लाभ
20°С … +60°С
Operating temperature range
NEMA3R
Enclosure
Built-in
Input harmonic filter
उत्पादों के बारे में
Compliance with IEEE519

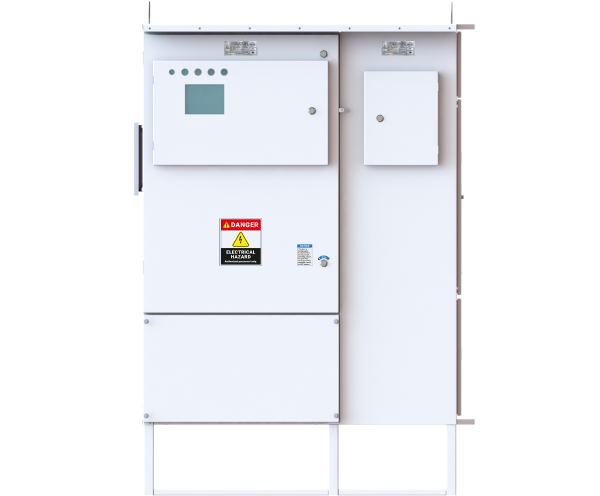

Variable Speed Drive AK06 line LH is a reliable and profitable solution based on the line RD, for applications that require compliance with the requirements of IEEE519 standard in the main operating range of the installation. with specialized authoring control algorithms.
Built-in input harmonic filter
LH drives provide a minimum level of distortion to the input network due to the built-in input harmonic filter. The rated output current of the VSDs is from 100 A to 2000 A, the supply voltage is 380 V, 50 Hz and/or 480 V, 60 Hz. ट्रायोल provides efficient control of installations both with induction and valve motors
विशेष विवरण
| Parameter | Value |
|---|---|
| Power supply, V |
|
| Input Frequency, Hz | 50±1 and/or 60±1 |
| Rated output current, A | 100 – 2000 |
| ओिरकरंट characteristics | 120% of rated value for 60 sec |
| Change of frequency task increment, Hz | 0,1 |
| Efficiency | 96 % |
| Passive filter efficiency | >98 % |
| Level of current distortion in the input network THDi | <5% in the load range from 25%* to 100% * operation in the extended load range is optional when specified in the order |
| DC bus choke | Built-in |
| Sine filter | Built-in |
| Capacitor unit (for voltage sags) | Option, outdoor |
| Braking IGBT | Option, built-in |
| Braking resistor | Option, outdoor |
| Electric meter | Option, built-in |
| GPRS router | Option, built-in |
| PID mode | YES |
| HMI |
|
| Output frequency, Hz |
|
| PWM frequency | up to 8 kHz depending on VSD type |
| Speed maintenance accuracy (static) | +/- 10% of rated speed in open-loop system |
| Control type |
|
| Light alarm | “Work”, “Waiting”, “Stop” |
| Operator Control Voltage | Option:
|
| Number of AI | 2 by default, optional extension +8 |
| AI type | programmable 4..20 mA, 0..5 mA, 0..10 V (frequency reference / multifunction analog input) |
| Number of DIN | 2 by default, optional extension +4 or more |
| DIN type | 24 V, input resistance: 4 kOhm |
| Number of analog outputs | Option, 4 or more programmable 4..20 mA, 0..5 mA, 0..10 V |
| Number of Relay Outputs | Option, 8 |
| Acceleration and deceleration rates |
|
| Insulation | Galvanic isolation between power and user circuits |
| Insulation resistance | > 5 MOhm |
| Protection type |
|
| Communication port | Modbus |
| Physical interface |
|
| Frame Transmission | Modbus RTU |
| up to 115200 bps | |
| Data format | 8 bits 1 stop bit, no parity |
| Number of addresses | 1 .. 255 addresses for Modbus |
| Access method | slave |
| Enclosure protection | IP20 (Indoor), NEMA3R |
| Material of enclosure | carbon steel |
| Operating temperature | -20°С … +60°С (-60°С optional) |
| Relative humidity | 95 % |
| Cooling type | Air forced |
