Triol AK06 FC

विशिष्ट लाभ

-20°С … +60°С

Operating temperature range

NEMA4

Enclosure

Built-in

Output filter provides THDi and THDu output <5%

Cabinets

Designed to integrate third-party variable frequency drives

उत्पादों के बारे में

Versatile solution with NEMA4

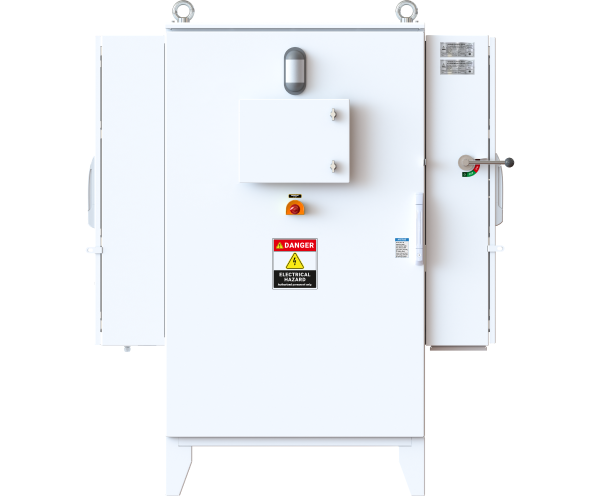

Variable Speed Drive AK06 line FC is a versatile NEMA4 enclosure solution which complies with NEMA 250-2014 standard. Enclosures of FC line are specially designed to have the possibility to integrate thirdparty variable speed drives into their cabinet.

Output filter, highly protected enclosure

FC line cabinet includes an input switching and protection equipment, an output filter, and an air-to-air heat exchanger for use in submersible and surface pumps for oil-producing and other industries. Input harmonic filter can be integrated into the cabinet of FC line. The highly protected enclosure and built-in power bay locking system ensure the reliable and safe use of the cabinet in outdoor conditions.

विशेष विवरण

Parameter
Value
Power supply, V
V 3х380% 15% / 3х480 (-15% ... + 10%)
Input frequency, Hz
50±1 Hz and/or 60±1 Hz
Rated output current, A
 100 – 675
characteristics
120% of rated value within 60 sec
Change of frequency task increment, Hz
Hz 0,1
Level of distortion in the output current THDi,%
% <5%
Level of distortion in the output voltage THDi,%
<5%

Level of distortion of current in the input network


*for the cabinets with built-in passive filter
<5% in the load range from 70% to 100%
DC bus choke
Built-in
Input passive filter
Option, Built-in
Sine filter
Built-in
PWM frequency, kHz
kHz> = 2,5
HMI
Process controller integration as per customer request
Local alarm
Optional
Operator Control Voltage
Optional: specified upon order
Enclosure protection
NEMA4
Material of enclosure
Carbon steel
Operating temperature
20°С … +55°С (with decrease of output power)
Relative humidity
95%
Cooling type
Air forced
