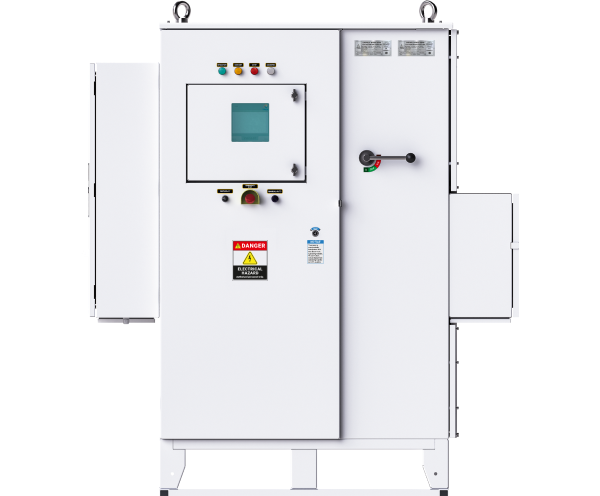

Triol AK06 CP

विशिष्ट लाभ

-20°С … +60°С

Operating temperature range

NEMA4, NEMA4X

Enclosure

Input harmonic filter

उत्पादों के बारे में

Built-in input harmonic filter

Variable Speed Drives AK06 line CP is a complex of unique advanced technologies, which creates the maximum benefit of implementing UD line solutions, enabling the minimum level of distortion to the input network due to the built-in input harmonic filter. NEMA4, NEMA4X enclosure together with the passive filter is a reliable solution for operation in harsh climatic conditions combined with high demands to the quality of the supply voltage.

Specially designed algorithms

supply voltage. The specialized ट्रायोल author’s control algorithms provide efficient control of installations with both induction and permanent magnet motors, as well as compliance with the requirements of IEEE519 standard, in the load range from 25% to 120%. VSDs line CP is available in 6 and 12-pulse design, which enables integrating the drive into various power supply systems on the field.

विशेष विवरण

Parameter
Value
Power supply, V
3×380 ± 15% / 3×480 (-15% … + 10%) 50% continuously with reduced output power 65% up to 500 ms (with a decrease of output power)
Input Frequency, Hz
±1 Hz for VSD with built-in passive filter
Rated output current, A
 100 – 2000
characteristics
120% of rated value for 60 sec
Change of frequency task increment
0,1 Hz
Efficiency
96%
Passive filter efficiency
>98%
Level of current distortion in the input network THDi,%
<5% in the load range from 25%* to 100% * operation in the extended load range is optional when specified in the order
DC bus choke
Built-in
Sine filter
Built-in
Capacitor unit (for voltage sags)
Option, outdoor
Braking IGBT
Option, built-in
Braking resistor
Option, outdoor
Electrical power meter
Option, built-in
GPRS router
Option, built-in
PID mode
YES
HMI
UMKA03 controller with a 7-inch monochrome screen, push-button control UMKA07 controller with LCD-TFT 7 inch display, push-button control (touch screen optional) Integration of third-party controller
Output frequency
1.5 – 80 Hz, in induction motor control mode 1.5 – 200 Hz, in permanent magnet motor control mode 1.5 – 600 Hz, in high-speed PMM control mode
PWM frequency
up to 8 kHz depending on VSD type
Speed maintenance accuracy (static)
+/- 10% of rated speed in open-loop system
Control type
vector control in an open-loop system without speed feedback (for PMM) scalar control: based on the characteristic voltage / frequency U / F (for induction motors)
Light alarm
“Work”, “Waiting”, “Stop”
Operator control voltage
Option: 10 V DC, +/- 2% current not more than 30 mA 24 V, 300 mA 110/220 V, 10A for connecting of third-party consumers
Number of AI
2 by default, optional extension +8
AI type
programmable 4..20 mA, 0..5 mA, 0..10 V (frequency reference / multifunction analog input)
Number of DIN
2 by default, optional extension +4 or more
DIN type
24 V, input resistance: 4 kOhm
Number of analog outputs
Option, 4 or more programmable 4..20 mA, 0..5 mA, 0..10 V
Number of Relay Outputs
Option, 8
Acceleration and deceleration rates

linear, from 0.1 Hz / s program mode with adjustable time of reaching given frequency

Insulation
Galvanic isolation between power and user circuits
Insulation resistance
> 5 MOhm
Protection type
protection Power switched temperature (IGBT) Max. and min. voltage in the DC link
Communication port
Modbus
Physical interface
2-wire RS-485/232 for Modbus by default Ethernet (optional) – for communication with ACS /automated control system/ wire RS-485/232 for Modbus – for communication with a surface downhole measuring system
Frame Transmission
Modbus RTU
up to 115200 bps
Enclosure protection
NEMA4, NEMA4X
Material of enclosure
carbon steel, stainless steel
Operating temperature
-20 ° С… + 60 ° С
Relative humidity
100%
Cooling type
Type of cooling Air-to-air heat exchanger for cooling of power compartment, air forced to cool the winding elements of the power circuit

प्रमाण पत्र

  • ISO 9001: 2015
    ISO 9001: 2015
  • 2014/30/EU
    2014/30/EU
  • 2014/35/EU
    2014/35/EU
