Highly reliable solution with a longservice life

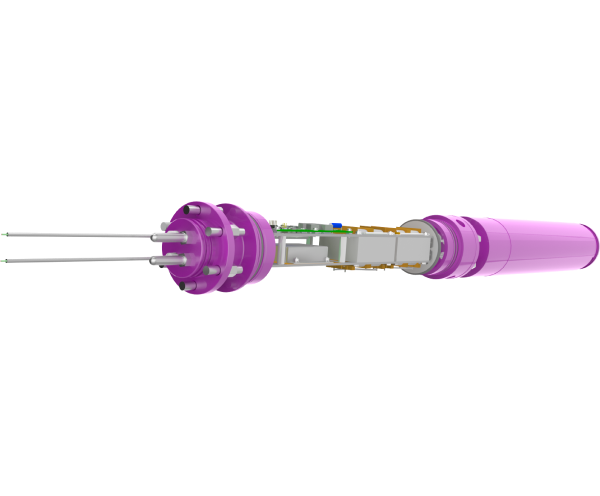

Downhole Measuring System Triol TM01-12 is a highly reliable solution with a longer service life for collecting, processing, displaying and transmitting actual submersible equipment parameters, and well parameters, at a fluid temperature of 150°C (302°F) and pressure in the equipment suspension area up to 40 MPa (5800psi).

Distinctive benefits of Downhole Measuring System Triol TM01–12:

Investment Savings, Cost savings during commissioning and well operation, Increased production through quality and timely solutions, Increased service life of submersible equipment, Ensuring the safety of personnel at wells site.

Displaying and processing of

  • pump intake pressure
  • ambient temperature
  • ESM stator winding temperature
  • ESM vibration acceleration in the X, Y and Z axis
  • insulation resistance in the circuit “Step-up transformer – submersible cable – ESM”

विशेष विवरण

Key parameters

Ambient temperature
  • Up to +125 °С (257 °F) – constantly
  • Up to +150 °С (302°F) – up to 1 year totally
ESM oil temperature From 0 to +200/250 °С (from +32 to +392/482 °F) ±2°С, (±3,6°F), resolution 0,01°С (0,1°F)
Pump intake pressure 0-40 MPa (0-5800 psi) ±0,2 MPa (±30 psi), resolution 0,001 MPa (0,1 psi)
Axis vibration x, y, z 0-30 m/s² (0-3,06 g) ±5 %, resolution 0,1 m/s² (0.001 g)
Insulation resistance "Step-up transformer – ESM power line" 0-1000 kΩ (±5 %), resolution 1 kΩ
Insulation resistance "Step-up transformer – ESM power line" 1000-10000 kΩ (±10 %), resolution 1 kΩ
Operation mode (duration) Extended
Data update time 35 s
Controller communication protocol RS-232, RS-485 Modbus RTU
Communication protocol Step-up transformer /  Submersible unit Closed
Communication protocol Surface unit / VSD Triol / Transfer



Additional Options

Options

Digital Module TM01 16 digital inputs /8 digital outputs
Analog Module TM01 8 digital outputs
Adam TM01 Adapter RS485/422/232 Ethernet
Triol High-Voltage Choke IP20 230х460х142mm, 24 kg, IP20, from -40 to +60°С (from -40 °F to +140 °F)
Triol High-Voltage Choke IP56 230х460х142mm, 24 kg, IP20, from -40 to +60°С (from -40 °F to +140 °F)
Triol Test unit TM01 454х324х171mm, 11 kg, IP67, from -40 to +55°С (from -40 °F to +131 °F), 4h
Triol Test unit pressure TM01 454х324х171mm, 9 kg, IP67, from -20 to +60°С (from -4 °F to +140 °F)
SCP Modem Modem type depends on the region of implementation
