TRIOL AT24 line MP
ऑर्डर स्थापित करें
विशिष्ट लाभ
-20 ºC…+50 ºC
Operating temperature
IP21 \ IP54
Enclosure
Removable graphic terminal
Operation without control terminal
Built-in
Input circuit breaker, input line choke, output dV/dt filter
Control system
Vector sensor (close-loop) and sensorless (open-loop) control
Encoders
3 different types of encoders supported
Motor parameters
Auto-tuning both with or without motor rotation
Multi-motor systems
Master-Slave drive application
Remote control terminal
Transient graphs
Macros
Quick start and the ability to exchange settings between VFDs
उत्पादों के बारे में
Wide range of application

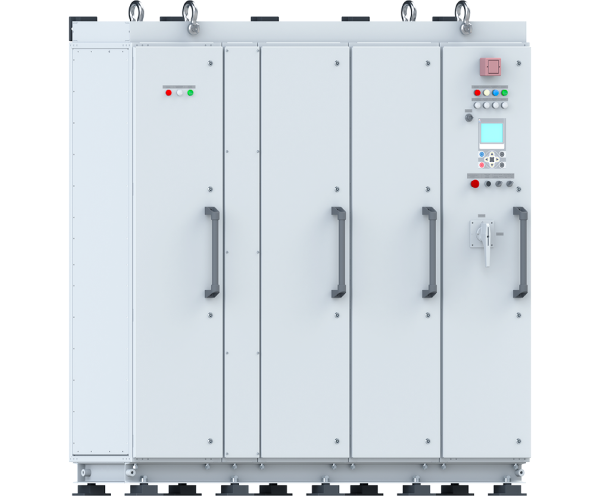

Modular Variable Frequency Drive Triol AT24 line MP is designed for controlling multi-motor systems that are used on powerful industrial plants, such as conveyors, rolling mills, drilling rigs, developed in compact dimensions.
Enhanceed enclosure
Triol AT24 VFD line MP basic configuration is IP21 enclosure. It is possible to advance Triol AT24 VFD line MP to IP54 enclosure with external air filter that is designed according to unique technology for successful operation in certain environmental conditions if requested. Triol AT24 VFD line MP consists of three separate modules, where each module has its own control system: rectifier cabinet (thyristor\diode or active), inverter cabinet, brake unit cabinet
विशेष विवरण
| Input
|
|
|---|---|
| Input voltage, V
|
3х380 / 3х480/ 3×690 (-15 % …+10 %) |
| Input frequency, Hz
|
50 / 60 (-5 %…+5 %) |
| Output
|
|
| Output current, A
|
300 … 600 |
| Output frequency, Hz
|
0.5…100 |
| Frequency resolution, Hz
|
0.1 |
| Acceleration / deceleration time, s
|
1 …4000 |
| Overcurrent characteristics
|
150 % of rated value for 60 sec
|
| Efficiency, %
|
>97 |
| Motor control
|
|
| Control methods
|
V/f (volts-per-hertz) (5 reference point) sensorless vector control (open-loop) sensor vector control (close-loop)
|
| PWM frequency, kHz
|
2…10 |
| Speed range
|
1:100 in open-loop system 1:1000 in closed-loop system
|
| Speed accuracy (static)
|
±10% of motor nominal slip in open-loop system ±0.1 % of rated speed in close-loop system
|
| Torque accuracy
|
±10% in open-loop system ± 5 % in close-loop system
|
| Braking
|
By frequency
Coasting Dynamic |
| Acceleration / deceleration types
|
S-curve, linear (3 reference points)
|
| Interface
|
|
| Terminal
|
Removable graphic terminal with induction power
|
| Light alarm
|
"“Ready”; “Run”; “Control channel”, “Rotation”
|
| Push buttons
|
“Start”; “Stop”; “Fast access “
|
| Control signals
|
|
| Customer supply
|
10 V DC, up to 30 mA 24 V DC, up to 150 mA
|
| Number of discrete inputs
|
8 |
| Discrete inputs
|
1 Dl Emergency Stop 8 Dl programmable
|
| Discrete inputs type
|
24 V
|
| Number of relay outputs
|
1 PTC sensor (switching at a resistance of 3 kOhm / 1.8) |
| Relay outputs type
|
4 |
| Discrete output
|
250 V, 3.5 A |
| Number of analog inputs
|
2 |
| Analog inputs
|
Programmable 0…10 V / 0…5 mA / 4…20 mA
|
| Number of analog outputs
|
1 |
| Analog outputs
|
Programmable 0…10 V / 0…5 mA / 4…20 mA
|
| Communication
|
|
| Physical Interface
|
2 wire RS-485 for Modbus
|
| Communication protocols
|
Modbus RTU
|
| Frame transmission
|
115200 bps by default 1200 -250000 bps
|
| Data format
|
8 bits, 1 stop bit, no parity
|
| Number of addresses
|
1 …255 for Modbus
|
| Access
|
Slave
|
| Protection
|
|
| Supply protections
|
Phase loss, phase sequence fault
|
| Motor protections
|
Overload
Underload Phase loss Current unbalance Encoder open circuit Brake resistor open circuit |
| VFD protections
|
Overload, Overheating, DC-link undervoltage, DClink overvoltage, Power switch failure
|
| Insulation
|
Galvanic isolation between power and user circuits
|
| insulation resistance
|
>1 MQ
|
| Configuration
|
|
| Circuit breaker
|
Built-in
|
| input line choke
|
Built-in
|
| input EMC filter (C2)
|
Option, built-in
|
| Output dV/dt filter
|
Built-in
|
| Common mode choke
|
Option, built-in
|
| Construction
|
|
| Enclosure
|
IIP21 (IP54 by request)
|
| Cabinet material
|
Steel
|
| Cooling
|
Forced air
|
| Noise level, @ 1 m, dB(A)
|
<75
|
| installation
|
Floor mounting
|
| Maintenance
|
One-side
|
| Cable entry
|
Bottom
|
| Operating conditions
|
|
| Operating conditions
|
ndoor, no caustic and volatile air, no dust
|
| Operating temperature
|
-20… + 50 ° C (-4… + 122 F)
|
| Storage temperature
|
-40… + 60 ° C (-40… + 140 F)
|
| Relative humidity, %
|
from 5 to 90 non condensing
|
| Altitude, m
|
up to 1000 m – rated power above 1000 m – with reduced power
|
Functions
- Start / stop / reverse of motor with set acceleration and deceleration rates
- Motor speed and torque control
- Auto-tuning of motor parameters (with rotation and without)
- PID-controller
- Automatic restart
- “Catch on the fly” mode
- Kinetic buffering
- Motor group control
- Operation by calendar
- Energy and electricity meters
- Encoders supported – incremental, absolute, sine/cosine
- Accelerated passing of resonant frequencies (3 ranges)
- Recording the last 32 reasons of failures
